MK-24 PTFE Suspension Fine Powder
PHYSICAL PROPERTIE
| Item | Unit | MK-24 |
| Grade | / | First-class Product |
| Appearance | / | White Powder |
| Tensile Strength | MPa | ≥30 |
| Elongation at Break | % | ≥350 |
| Particle Size | μm | 20～30 |
| Bulk Density | g/L | 300～500 |
| Moisture Content | % | ≤0.030 |
| Standard Relative Density | / | 2.130～2.180 |
| Flex Life (0.4 mm thick film, 23°C) | Ten Thousand Times | ≥600 |
| Compression Set（23℃，14MPa、24h） | % | ≤6.0 |
| Dielectric Strength | MV/m | ≥100 |
| Processing Method | / | Compression Molding |
Application

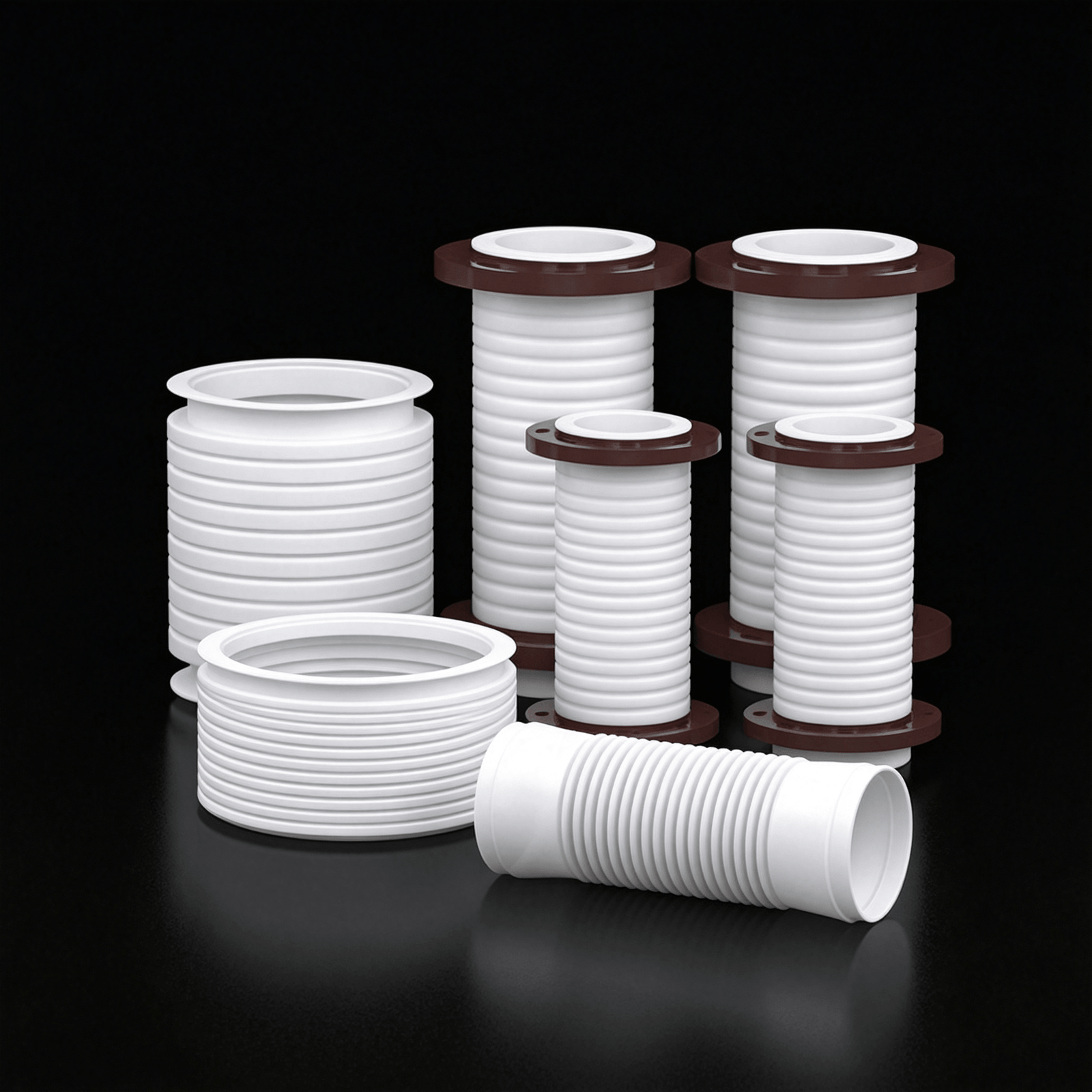

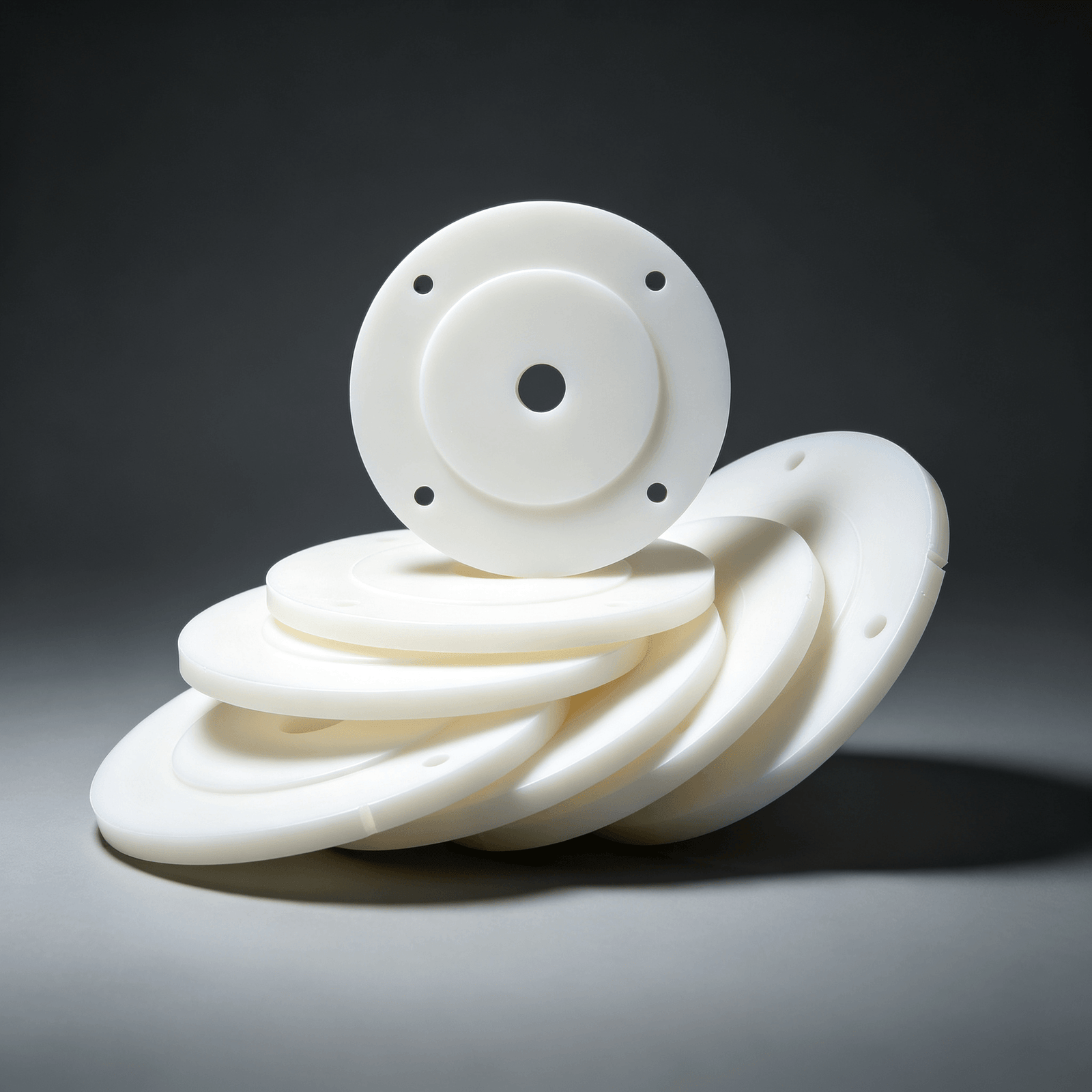

This product is suitable for components such as diaphragms and bellows that require high flexural endurance. It offers excellent mechanical and electrical properties, good weldability, and low metal ion leaching, making it widely applicable in high-end sectors such as semiconductors and 5G.
Packaging
- Packed in polyethylene plastic bags, and then sealed in outer packaging bags, each bag contains a net weight of 25 kg.
- The product is packaged in two layers of plastic bags and placed in a rigid drum, with a net content of 20 kg per drum.
Transportation & Storage
Transportation: Transport as non-hazardous goods; during transport, avoid exposure to moisture and severe vibration, and prevent damage to the packaging.
Storage: It should be stored in a clean, cool, and dry warehouse, protected against the ingress of dust, moisture, and other foreign matter.
