NC-130 Low-Temperature Endothermic White Foaming Agent
PHYSICAL PROPERTIES
| Item | Specification |

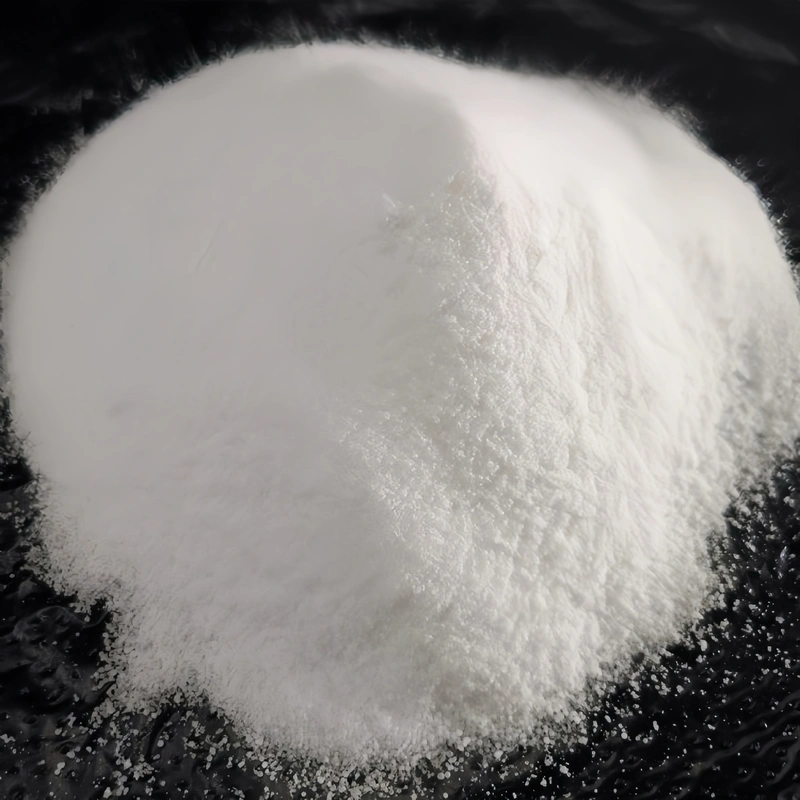

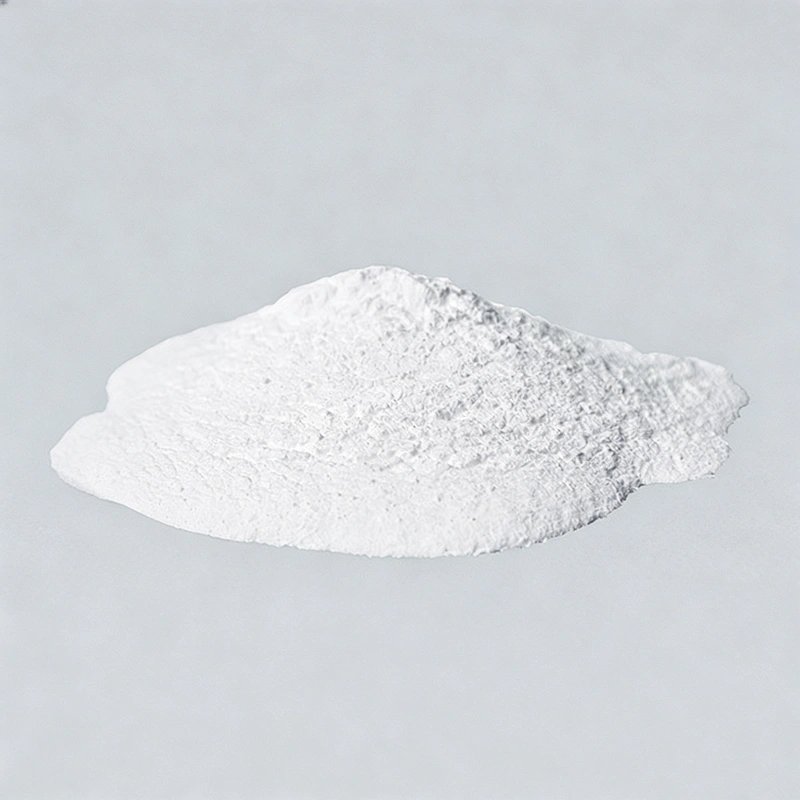

| Appearance | White free-flowing fine powder |
| Decomposition Temperature | NC-130：130～160°C；NC-150：150～190°C |
| Gas Yield | 130～155 mL/g |
| Volatile Content | ≤0.3% |
| Fineness | ≥99.5% pass through 325 mesh |
| Average Particle Size | 8～10 μm |
| Bulk Density | 0.45～0.55 g/cm³ |
| Ash Content | ≤1.0% |
| Recommended Dosage, phr per 100 parts PVC resin | See below |
| PVC low-foam advertising board / Celuka foam board | 0.6～1.2 phr |
| PVC/WPC foam door panels, wall panels, skirting | 0.8～1.5 phr |
| PVC soft foam insoles, interior parts, sealing strips | 0.3～0.7 phr |
| Eco-friendly food-contact PVC foam products | 0.5～1.0 phr |
| Used with AC blowing agent | 0.3～0.6 phr |
Raw Materials & Manufacturing Process
Main Raw Materials:
Modified sodium bicarbonate composite salts, stearic acid modifiers, polyethylene wax dispersants, activated silica carriers, silicone coating agents
Manufacturing Process:
Accurate raw material dosing → low-speed premixing → high-speed thermal modification and coating (85–95°C) → low-temperature air drying → jet ultra-fine pulverization → cyclone classification → iron removal → packaging → finished product
Safety & Environmental Standards
- Non-toxic, odorless, and non-corrosive
- Free from azo compounds, phthalates, and polycyclic aromatic hydrocarbons (PAHs)
- Complies with RoHS, REACH, and GB 9685 food-contact standards
- Non-flammable and non-explosive; no explosion hazard
Applications

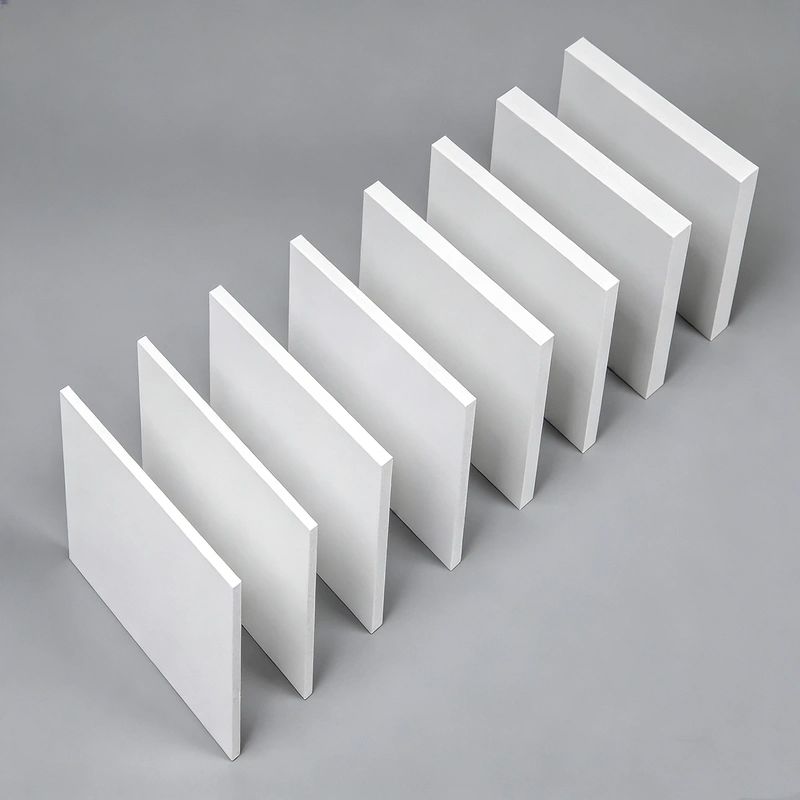

- PVC foamed boards, advertising boards, PVC foam sheets (Celuka boards), co-extruded foamed boards

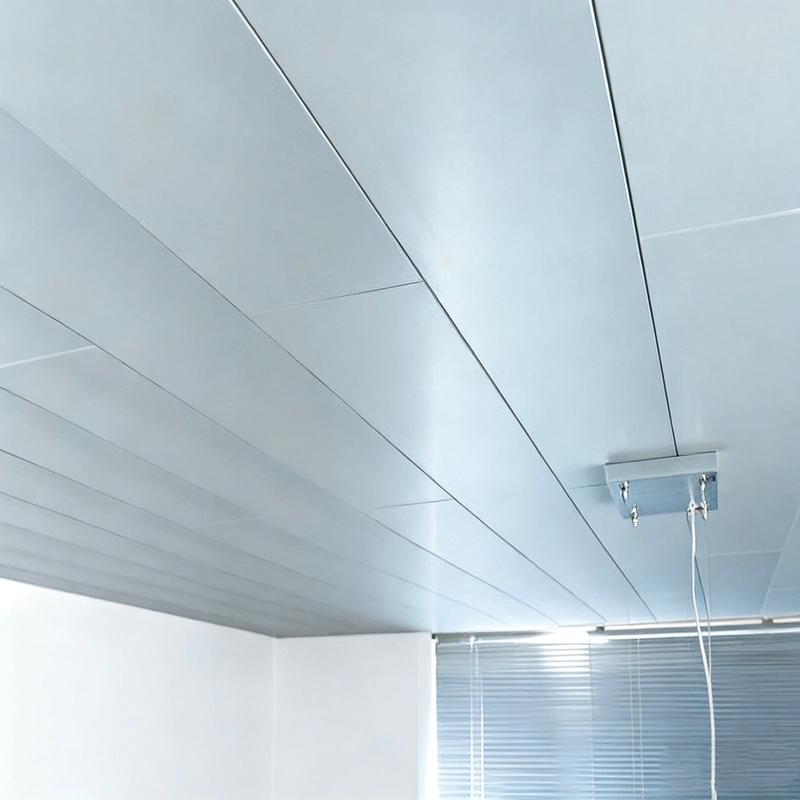

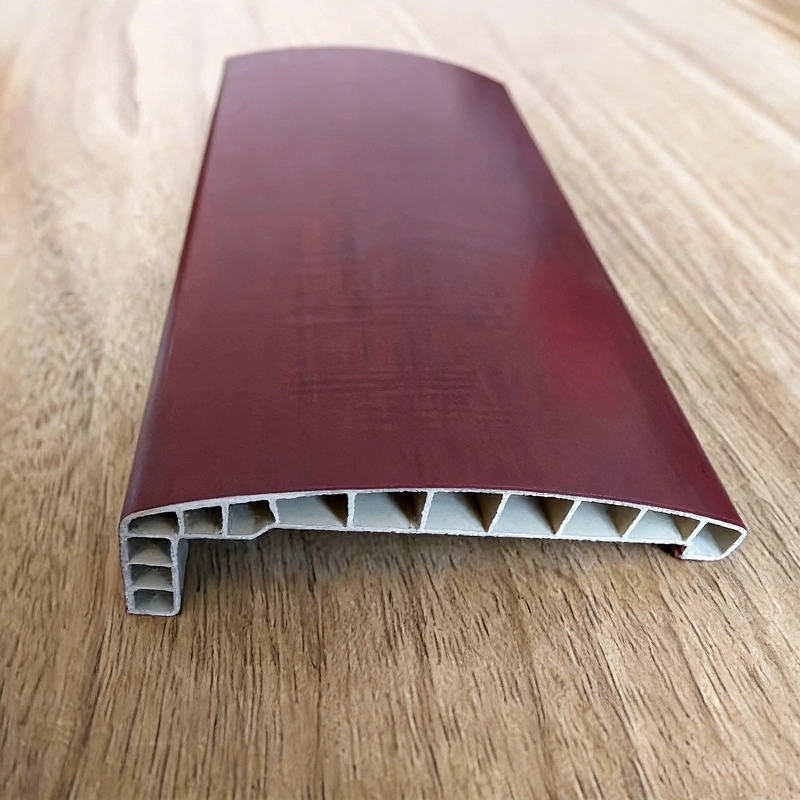

- PVC WPC door panels, wall panels, ceilings, door frames, skirting boards, decorative profiles
- Flexible PVC foamed insoles, automotive interior parts, sealing strips, anti-slip mats
- Eco-friendly PVC foamed toys, packaging cushioning materials, medical cushioning materials

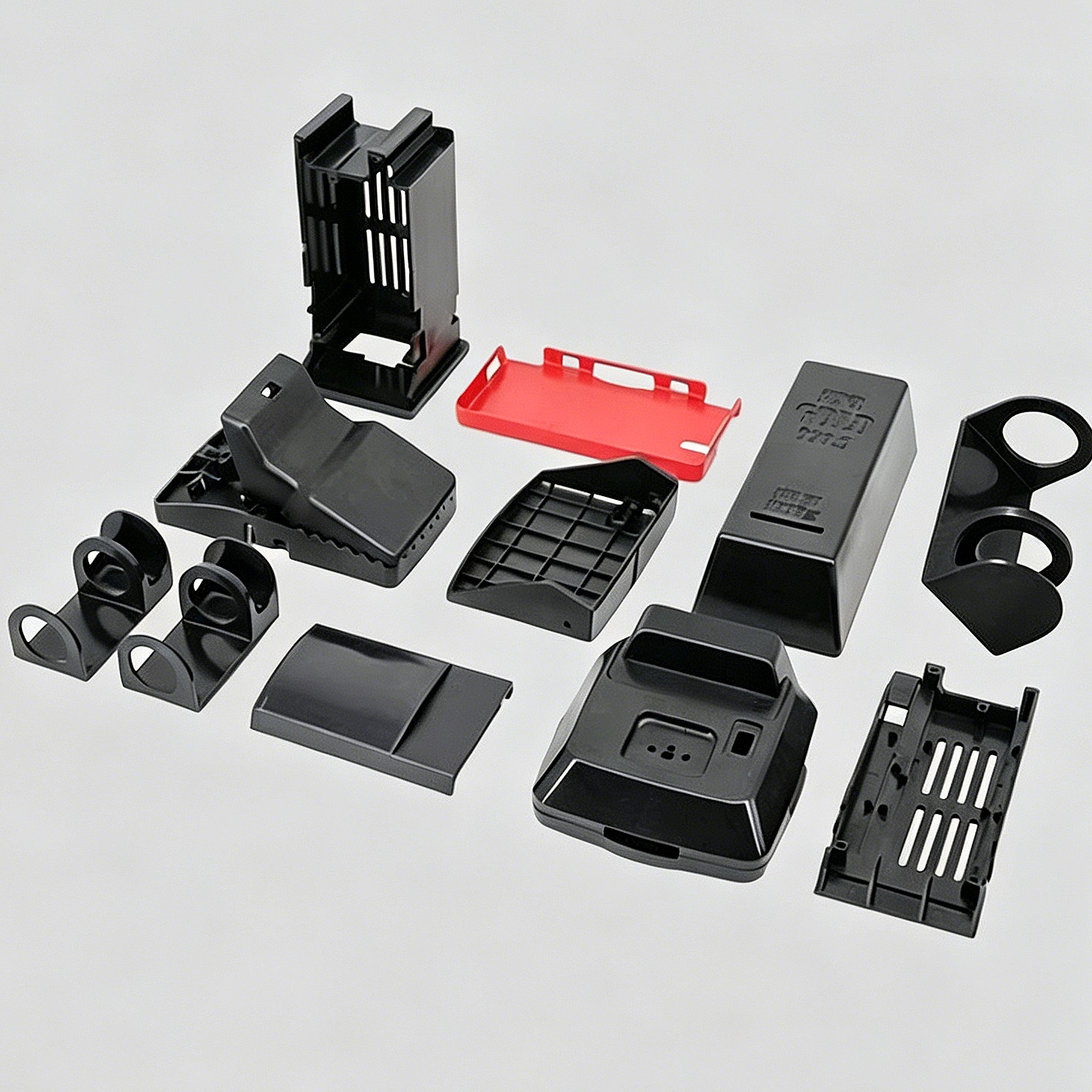

- Low-expansion lightweight PVC pipes, profiles, appliance housings and interior parts
Key Features & Advantages
- Endothermic Decomposition:
No overheating or burning; prevents yellowing and discoloration of products - Fine & Uniform Cell Structure:
High closed-cell ratio, smooth surface, and no pinholes - Excellent Compatibility:
Compatible with PVC resins, stabilizers, and fillers; no blooming or migration - Clean Decomposition:
Odorless and residue-free, suitable for environmentally friendly and food-contact applications - Flexible Formulation:
Can be used alone or combined with AC foaming agents to adjust cell structure and expansion ratio
Packaging, Storage & Shelf Life
Packaging:
- 25 kg fiber drum / paper-plastic composite bag
Storage:
Store in a cool, dry, and well-ventilated place. Keep sealed and protected from moisture, sunlight, and heat sources
Transportation:
Transport as non-hazardous chemical goods; protect from rain, moisture, sunlight, and heavy pressure
Shelf Life:
12 months from the date of manufacture
