High-purity PVDF
PHYSICAL PROPERTIE
| Item | Unit | Index | Test Method / Standards |
| Appearance | / | Granular | Visual inspection |
| Melt Flow Index | g/10min | ≥1 | GB/T 3682 |
| Tensile Strength | MPa | ≥35 | GB/T 1040 |
| Elongation at Break | % | ≥25 | GB/T 1040 |
| Relative Density | / | 1.77~1.79 | GB/T 1033 |
| Melting Point | ℃ | 165~175 | GB/T 28724 |
| Thermal Decomposition Temperature | ℃ | ≥380 | GB/T 33047 |
| Hardness(Shore D) | / | 70~80 | GB/T 2411 |
| Note | F, Cl, Al, Cu, Ba, Fc, Ni, and TOC conform to SEMI F57 standard | ||
Product Description
This product is a high-purity PVDF granule with low ion deposition performance, mainly used in the semiconductor field.
Application

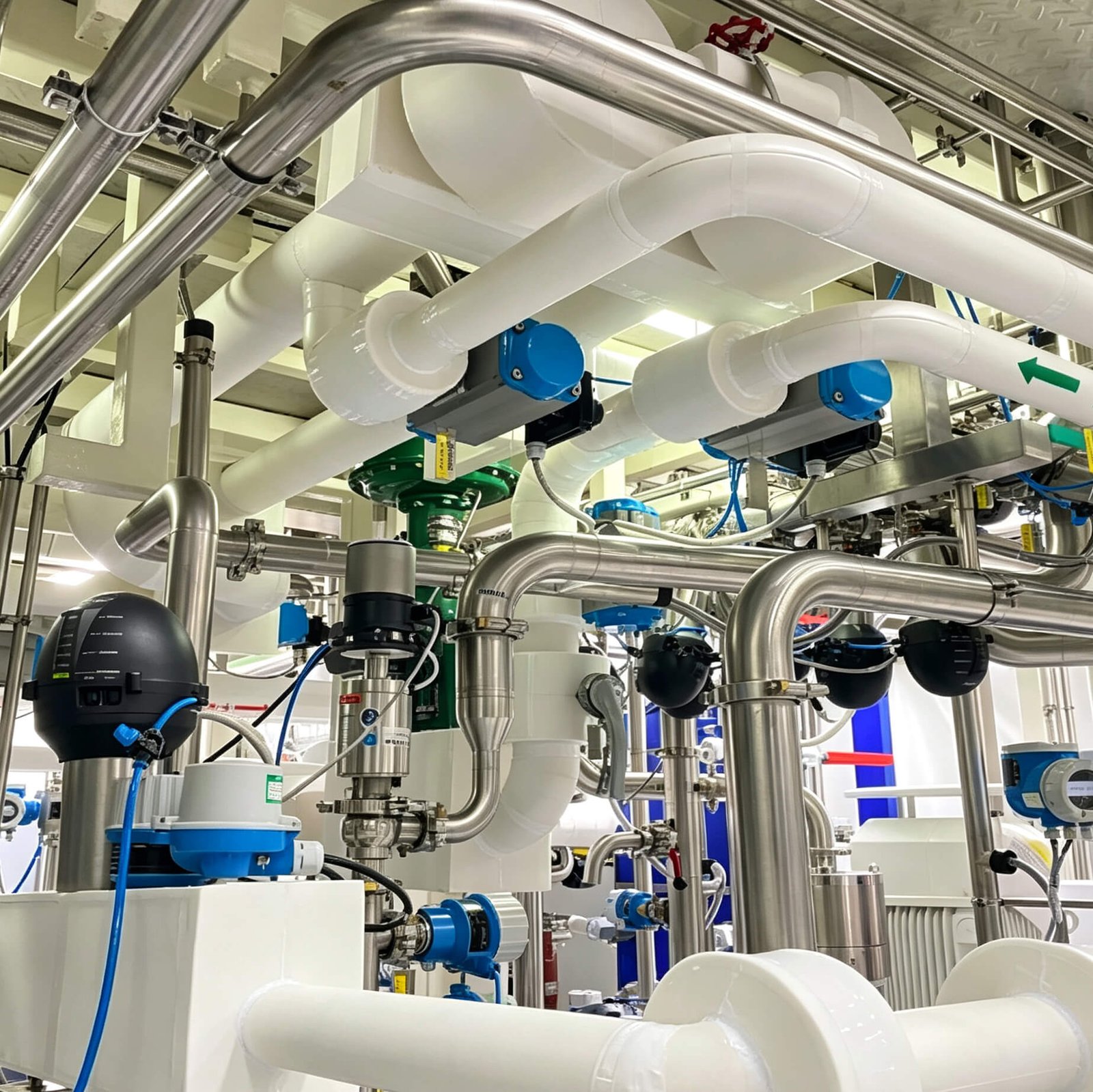

It is mainly used in semiconductor, medical, environmental protection, and high-end drinking water fields.
Packaging
- Packed in polyethylene plastic bags, and then sealed in outer packaging bags, each bag contains a net weight of25 kg.
Transportation & Storage
Transportation: Transport as non-dangerous goods. Avoid heat, moisture, or severe vibration during transportation.
Storage:It should be stored in a clean and dry environment at 5~30℃ to prevent impurities such as dust and water vapor from mixing in.
Attention
Avoid processing or using at temperatures above 350℃ to prevent decomposition and the generation of toxic gases.
